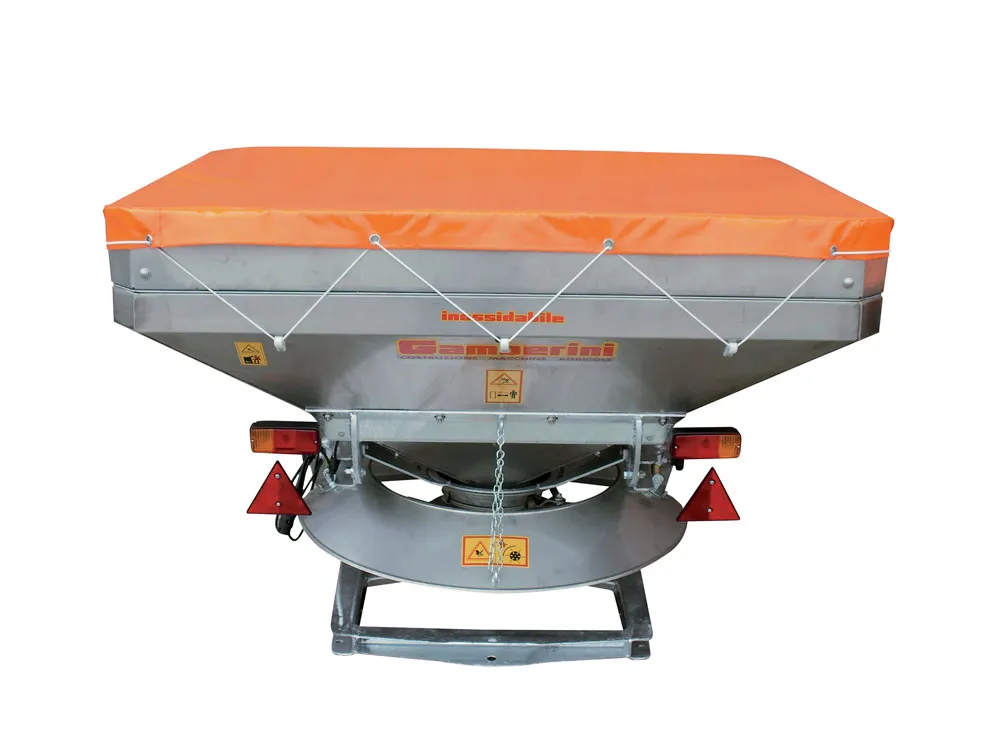

Salt Spreader PR 600
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
Mounted salt spreader PR 600 with tipping rectangular hopper and spreading disc, complete with cardan shaft, filtering grid and tarpaulin cover.
TECHNICAL CHARACTERISTICS
- Painted box-section steel frame, 6 mm thick, extremely sturdy
- Hot-dip galvanized, rectangular tipping hopper
- Slow-rotation cast-iron gearbox with hardened gears and case-hardened, oil-bath shafts
- Spreading disc with 4 adjustable AISI 304 stainless steel vanes
- High articulated agitator with rubber flange
- 3-point linkage, category I and II
- Lighting kit
- Hot-dip galvanized spreading limiter, adjustable from 2 to 6 metres
- Manual lever to open the metering device
- Stainless steel metering device with 3 holes
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Stainless steel “flap-type” spreading limiter
- Flex cable for remote control
- Hydraulic opening
- Hydraulic-drive version, complete with hydraulic motor, quick-connect hoses and regulating valve (cardan shaft not included)
- 3 castor wheels to move the spreader in the warehouse
- Stainless steel hopper, raising border, disc guard and spreading limiter + hot-dip galvanized frame
- Hot-dip galvanizing of the frame
Technical data
| Technical data | PR 600 |
|---|---|
| Hopper capacity (litres) | 585 |
| Spreading width (metres) | 2÷6 |
| Dimensions (WxDxH cm) | 163x127x92 |
| Empty weight (kg) | 145 |
| Minimum tractor power (HP) | 60 |
| Power take-off (rpm) | 540 |
