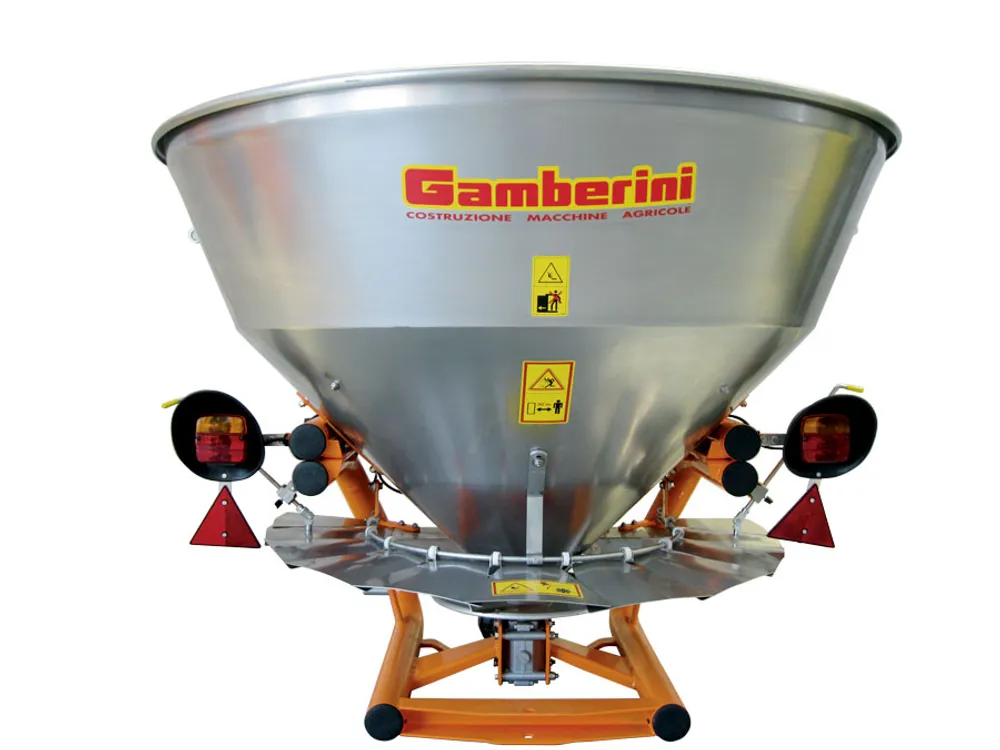

Salt Spreader MGD 550
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
Mounted salt spreader MGD 550 with double cone-shaped hopper and spreading disc, complete with cardan shaft, filtering grid and tarpaulin cover.
TECHNICAL CHARACTERISTICS
- Sturdy, lightweight painted tubular frame, dismountable in 2 parts
- Hot-dip galvanized, seamless double cone-shaped hopper with 3 outlet holes
- Gearbox
- Manually operated AISI 304 stainless steel metering device
- Spreading disc with 4 adjustable AISI 304 stainless steel vanes
- High articulated agitator with rubber flange
- Cardan shaft L = 800 mm
- 3-point linkage, category I and II
- Manual lever to select the metering device opening holes
- Filtering grid
- Lighting kit
- Spreading limiter, adjustable from 2 to 6 metres
- Cover tarpaulin
ACCESSORIES ON REQUEST
- Stainless steel “flap-type” spreading limiter
- Hydraulic opening
- Hydraulic-drive version, complete with hydraulic motor, quick-connect hoses and regulating valve (cardan shaft not included)
- Frame bracket for quick-hitch to skid-steer loaders (Bobcat/Caterpillar type)
- Hot-dip galvanizing of the frame
Technical data
| Technical data | MGD 550 |
|---|---|
| Hopper capacity (litres) | 420 |
| Spreading width (metres) | 2÷6 |
| Dimensions (cm) | Ø 140x96 |
| Empty weight (kg) | 140 |
| Minimum tractor power (HP) | 40 |
| Power take-off (rpm) | 540 |
