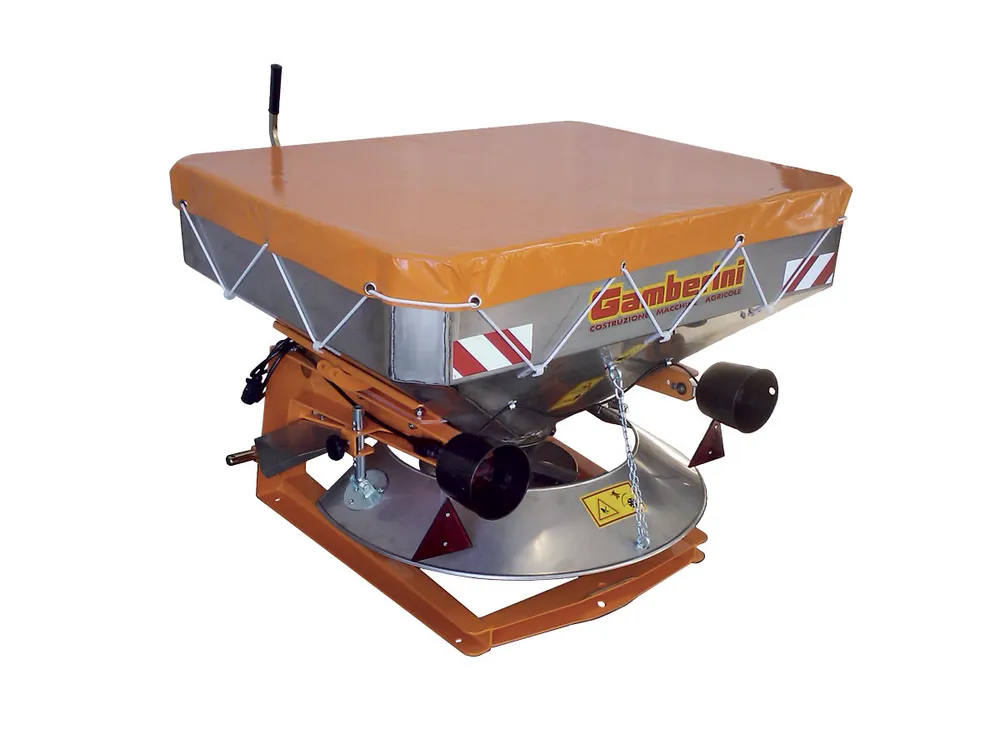

Salt Spreader PR 550
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
Mounted salt spreader PR 550 with fixed rectangular hopper in AISI 304 stainless steel and spreading disc, complete with cardan shaft, filtering grid and tarpaulin cover.
TECHNICAL CHARACTERISTICS
- Painted box-section steel frame, 6 mm thick, extremely sturdy
- Fixed rectangular hopper, entirely in AISI 304 stainless steel
- Slow-rotation cast-iron gearbox with hardened gears and case-hardened, oil-bath shafts
- Spreading disc with 4 adjustable AISI 304 stainless steel vanes
- Salt agitator
- 3-point linkage, category I and II
- Lighting kit
- Spreading limiter with support chain, entirely in AISI 304 stainless steel
- Manual lever to open the metering device
- AISI 304 stainless steel metering device
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Hydraulically operated spreading limiter
- Stainless steel “flap-type” spreading limiter
- Flex cable for remote control
- Hydraulic opening
- Hydraulic-drive version, complete with hydraulic motor, quick-connect hoses and regulating valve (cardan shaft not included)
- Hot-dip galvanizing of the frame
Technical data
| Technical data | PR 550 |
|---|---|
| Hopper capacity (litres) | 450 |
| Spreading width (metres) | 2÷6 |
| Dimensions (WxDxH cm) | 125x118x96 |
| Empty weight (kg) | 163 |
| Minimum tractor power (HP) | 50 |
| Power take-off (rpm) | 540 |
