Salt Spreader PR 240
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION

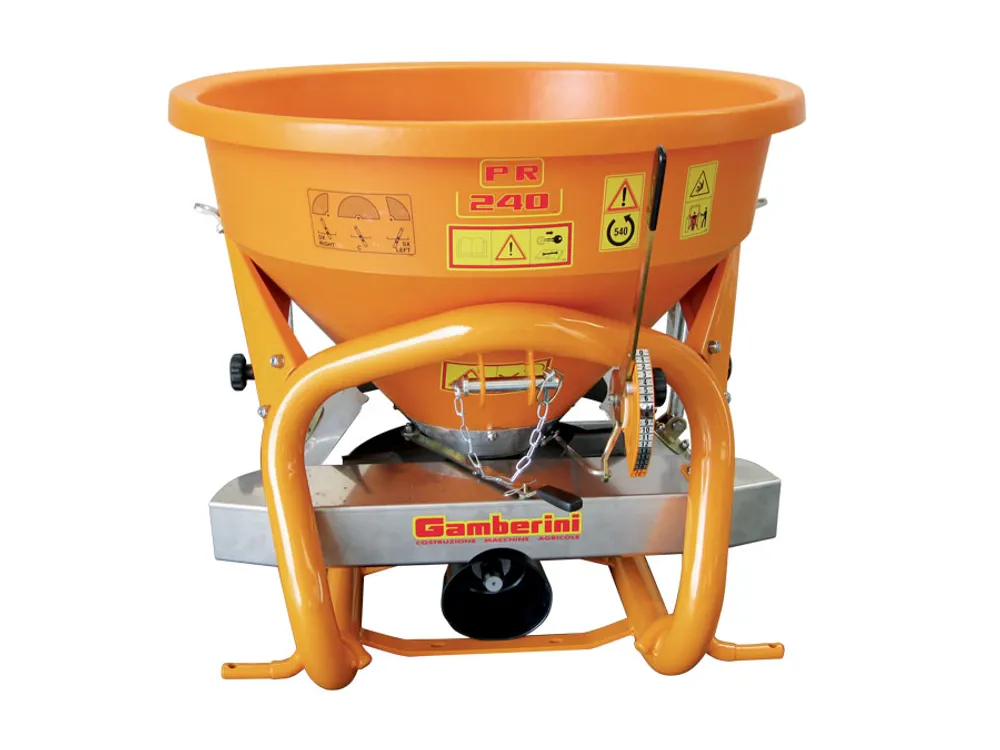

Mounted salt spreader PR 240 with conical hopper and spreading disc, complete with cardan shaft, filtering grid and tarpaulin cover.
TECHNICAL CHARACTERISTICS
- Lightweight, painted tubular frame
- Hot-dip galvanized, seamless double cone-shaped steel hopper with 2 outlet holes
- Slow-rotation aluminium gearbox with oil-bath lubricated gears
- Spreading disc with 4 adjustable AISI 304 stainless steel vanes
- High articulated agitator with rubber flange
- 3-point linkage, category I
- Manual lever to open the metering device
- Left-hand selection lever
- AISI 304 stainless steel metering device
- Spreading limiter, adjustable for a working width from 2 to 6 metres
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Hydraulically operated spreading limiter
- Stainless steel “flap-type” spreading limiter
- Hydraulic opening
- Lighting kit
- Hydraulic-drive version, complete with hydraulic motor, quick-connect hoses and regulating valve (cardan shaft not included)
- Polyethylene hopper + stainless steel bottom for PR 240
- Polyethylene hopper + stainless steel bottom for PR 500
- AISI 304 stainless steel hopper, disc guard and spreading limiter + galvanized frame
- Frame bracket for quick-hitch to skid-steer loaders (Bobcat/Caterpillar type)
- Hot-dip galvanizing of the frame
Technical data
| Technical data | PR 240 |
|---|---|
| Hopper capacity (litres) | 200 |
| Spreading width (metres) | 2÷6 |
| Dimensions (cm) | Ø 101x81 |
| Empty weight (kg) | 56 |
| Minimum tractor power (HP) | 20 |
| Power take-off (rpm) | 540 |
