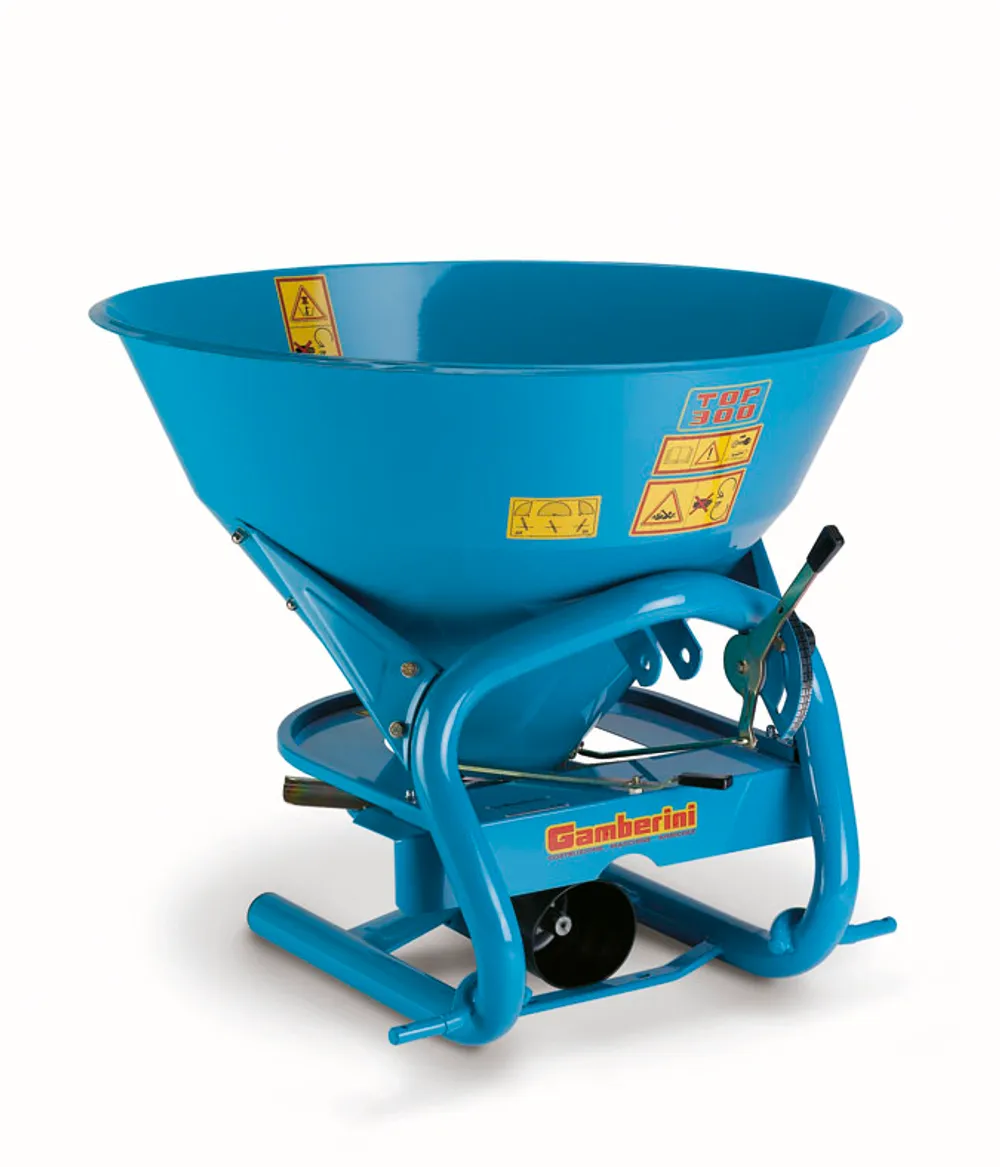

Fertilizer Spreader TOP 300
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
TOP 300 mounted fertilizer spreader with double cone-shaped hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Light, dismountable single-tube frame
- Seamless double cone-shaped hopper with 2 outlet holes
- Blue powder coating with primer
- Aluminium gearbox with lubricant
- Spreading disc with 4 adjustable vanes
- Standard cast-iron agitator
- 3-point linkage, category I
- Manual lever to open the metering device
- Manual lever for right- or left-hand spreading
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers
- Painted closed side conveyor
- Hot-dip galvanized closed side conveyor
- AISI 304 stainless steel closed side conveyor
- Painted closed bilateral conveyor (with 4-hole hopper)
- Hot-dip galvanized closed bilateral conveyor (with 4-hole hopper)
- AISI 304 stainless steel closed bilateral conveyor (with 4-hole hopper)
- Manual shutter for the bilateral conveyor (to fertilize 1 row)
- Hot-dip galvanized spreading limiter
- Flex cable for remote control
- Hydraulic opening
- AISI 304 stainless steel disc and vanes
- AISI 304 stainless steel disc with 5 vanes
- Cover tarpaulin
- Stainless steel hopper with AISI 304 stainless steel metering devices
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | TOP 300 |
|---|---|
| Hopper capacity (litres) | 270 |
| Spreading width (metres) | 6÷14 |
| Dimensions (cm) | Ø 110 x 89 |
| Empty weight (kg) | 58 |
| Spreading capacity (hectares/hour) | 1,5 |
| Minimum tractor power (HP) | 20 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
