Fertilizer Spreader TOP TRAY 240
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION

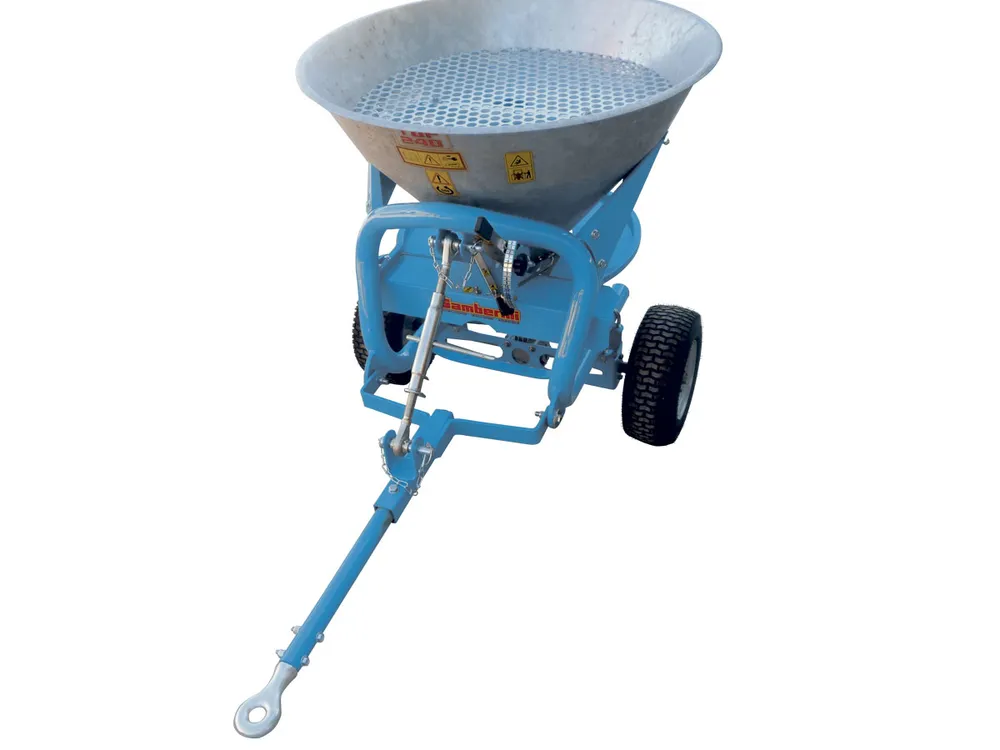

TOP TRAY 240 towed fertilizer spreader with double cone-shaped hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Sturdy, lightweight single-tube frame
- Seamless double cone-shaped hopper
- 16x6.50-8 wheels
- Metering device with 2 adjustable holes for right-hand or left-hand distribution
- Manual lever to open the metering device
- Disc with 4 adjustable vanes
- Differential with aluminium housing
- The spreading disc is driven by the wheels; fertilizer distribution rate depends on the towing vehicle’s forward speed
- Hitch with Ø 22 mm swivel tow eye
- Manual control lever to engage/disengage the spreading disc rotation from the wheels
- Standard agitator
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers
- Hot-dip galvanized spreading limiter
- Flex cable for remote control
- Ø 50 mm ball-type drawbar hitch (Ball Hitch)
- Hydraulic opening
- AISI 304 stainless steel disc and vanes
- Filtering grid
- Cover tarpaulin
- Polyethylene hopper + stainless steel base
- Stainless steel hopper + AISI 304 stainless steel metering device
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | TOP TRAY 240 |
|---|---|
| Hopper capacity (litres) | 200 |
| Spreading width (metres) | 6÷12 |
| Dimensions (WxDxH cm) | 100 x 155 x 110 |
| Empty weight (kg) | 86 |
| Spreading capacity (hectares/hour) | 2,5 |
| Minimum tractor power (HP) | 12 |
| Tyres | KENDA 16x6,50 - 8 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
