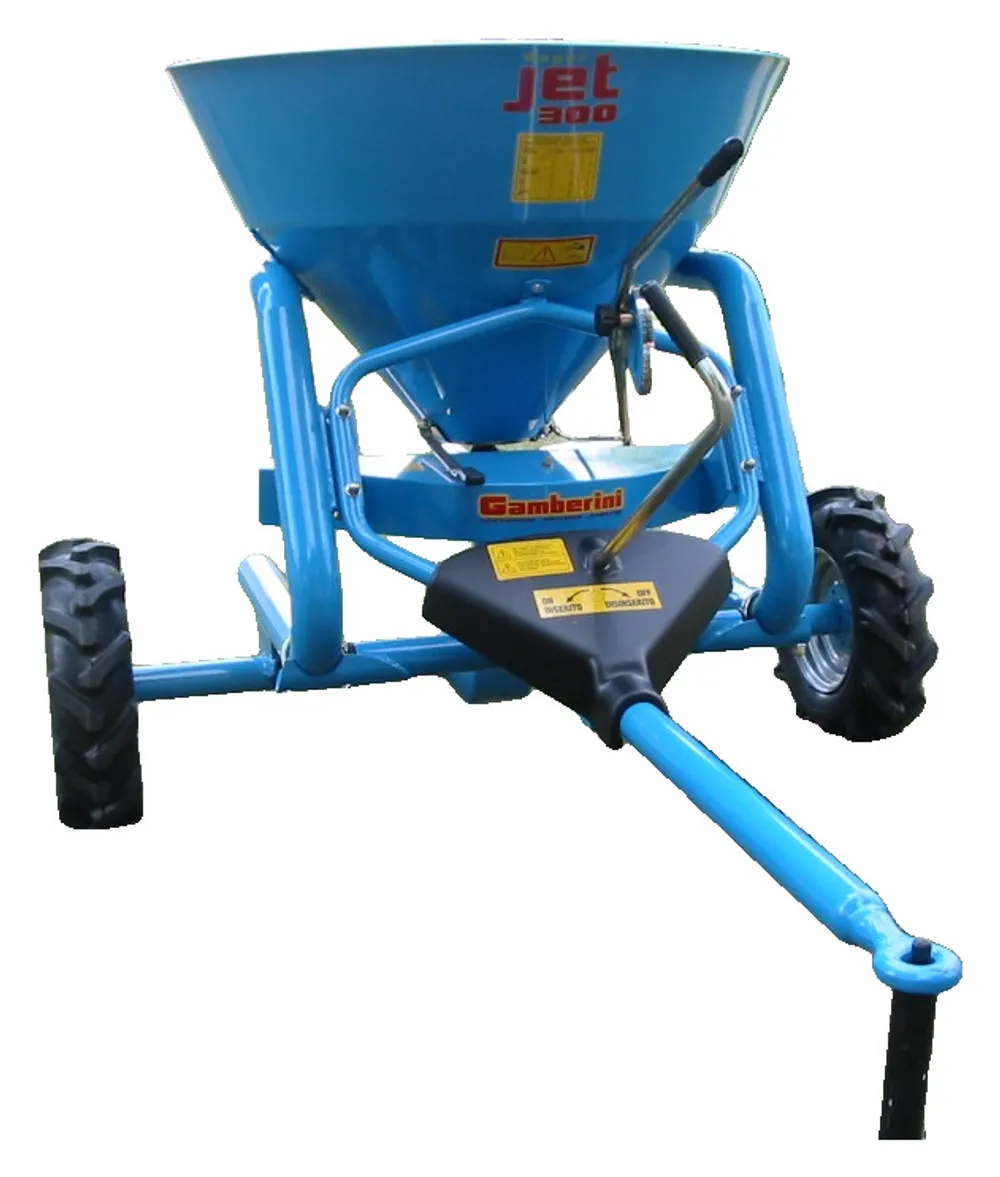

Fertilizer Spreader Super Jet 300

Fertilizer Spreader Super Jet 300

TECHNICAL CHARACTERISTICS

– Trailed fertilizers spreaders with spinner disc
– Painted tubolar steel frame, light and sturdy construction
– Painted double cone shaped steel hopper single piece without welding
– Wheels size T.M. 5.00×10
– Flow control with manual lever for full field, right hand, left hand distribution
– Spreading disc with 6 adjustable vanes
– Cast iron gearbox with gears lubricated in oil bath
– Ground driven; the spreading width depends on the machine speed
– Spreading disc revolution is controlled by a manual ON / OFF lever
– Draw bar with turning eye Øi 22 mm
– Standard agitator

ACCESSORIES ON REQUEST

– Agitator for powdered fertilizers
– Hot galvanized spreading limiter
– Flexible cable for remote control
– AISI 304 stainless steel spreading disc and vanes
– AISI 304 stainless steel n° 6 short vanes
– Tires 20×10.0x8 large size ( in place of standard ones )
– Ø 50 mm ball hitch
– Rain proof hopper cover
– Polyethylene hopper for SUPER JET 500
– Hot galvanized filtering grid
– AISI 304 stainless steel hopper and flow control device
– Hot galvanized hopper
– Hydraulic opening
– Hot galvanized hopper and frame

TECHNICAL DATA
SUPER JET
300
SUPER JET
400
SUPER JET
500
Hopper capacity (Liters) 260 310 360
Spreading width (meters) 6÷18
Size (cm) 150 x 198 x 135 150 x 198 x 140 150 x 198 x 145
Empty weight (kg) 120 123 127
Spreading width (hectare/hours) 2,5
Minimum tractor power (HP) 15 20 20
Tires T.M.5.00 x 10
Fertilizer to be distributed Granular chemical, powdery,Pelleted
