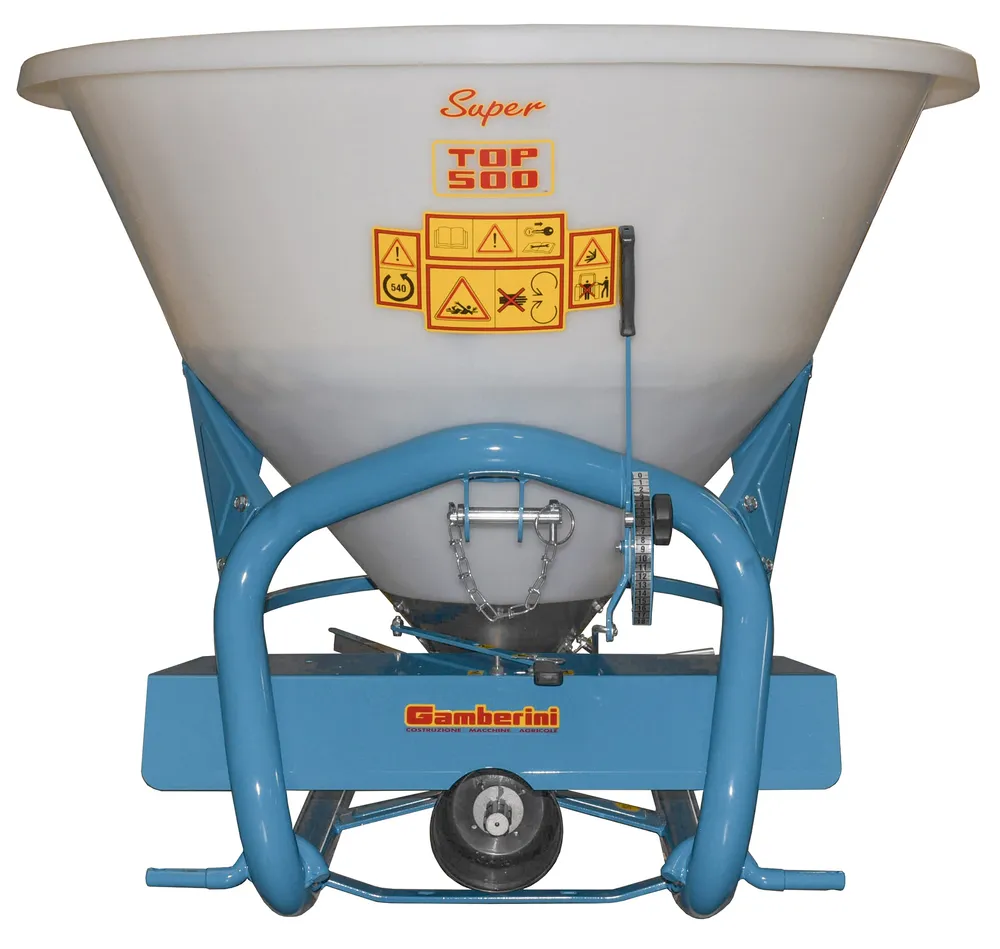

Fertilizer Spreader SUPER TOP 500
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
SUPER TOP 500 mounted fertilizer spreader with 4-hole polyethylene double cone-shaped hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Light, dismountable single-tube frame
- Polyethylene double cone-shaped hopper with stainless steel base and 4 adjustable holes
- Aluminium gearbox with lubricant
- Spreading disc with 5 adjustable AISI 304 stainless steel vanes + anti-turbulence device
- Extra-large protective guard
- High articulated agitator
- Selector to adjust the 2 or 4 outlet holes
- 3-point linkage, category I
- Manual lever to open the metering device
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Painted closed side conveyor
- Hot-dip galvanized closed side conveyor
- AISI 304 stainless steel closed side conveyor
- Painted closed bilateral conveyor (with 4-hole hopper)
- Hot-dip galvanized closed bilateral conveyor (with 4-hole hopper)
- AISI 304 stainless steel closed bilateral conveyor (with 4-hole hopper)
- Manual shutter for the bilateral conveyor (to fertilize 1 row)
- Hot-dip galvanized spreading limiter
- Flex cable for remote control
- Hydraulic opening
- Cover tarpaulin
- Hot-dip galvanizing of the frame
Technical data
| Technical data | SUPER TOP 500 |
|---|---|
| Hopper capacity (litres) | 360 |
| Spreading width (metres) | 6÷14 |
| Dimensions (cm) | Ø 120 x 100 |
| Empty weight (kg) | 60 |
| Spreading capacity (hectares/hour) | 2,5 |
| Minimum tractor power (HP) | 35 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
