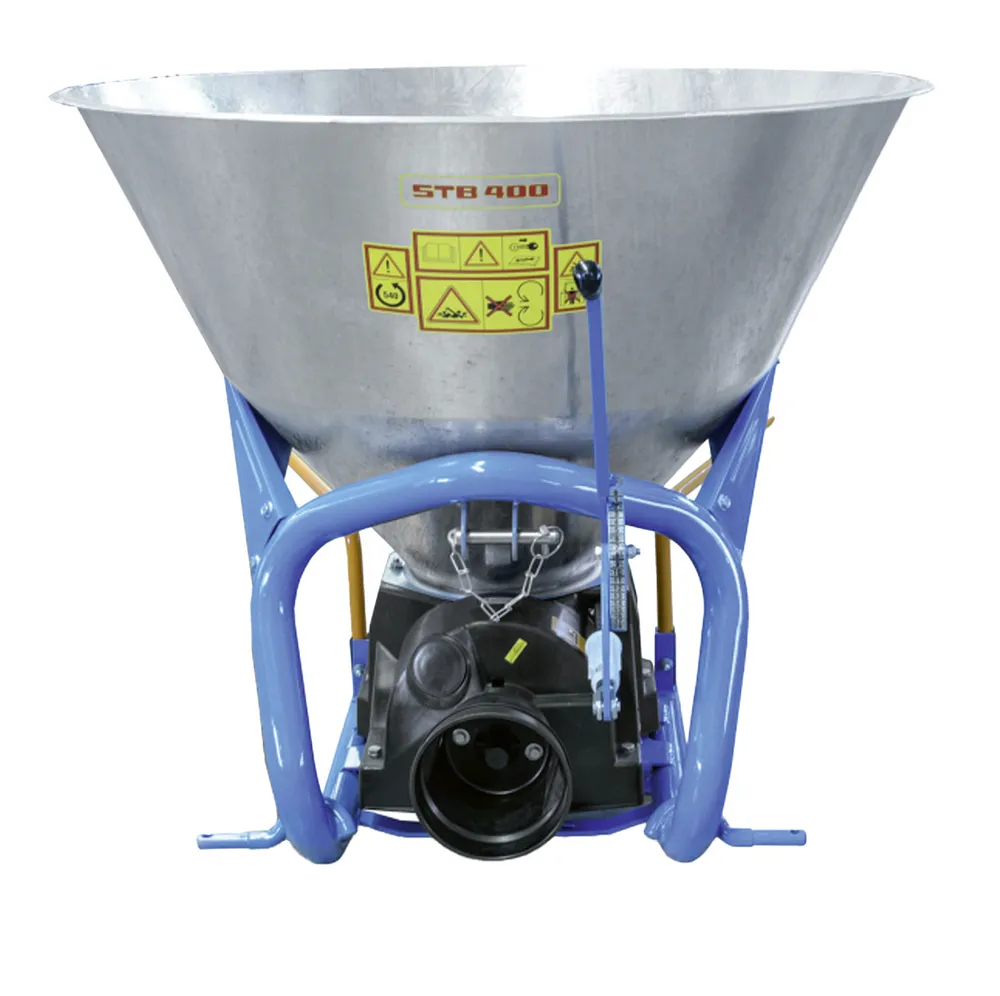

Fertilizer Spreader STB 400

Fertilizer Spreader STB 400

TECHNICAL CHARACTERISTICS

– Mounted fertilizer spreader with pendulum tube distribution
– Hot galvanized double cone shaped steel hopper single piece without welding
– Painted tubular steel frame, light and sturdy construction
– Stainless steel AISI 304 flow control unit
– Spreading width adjustable from 4 to 8 metres by means of a special wrench supplied
– Manual lever to operate flow control openings
– Standard agitator
– Filtering grill
– 3 points linkage, 1st Cat
– Cardan shaft L = 700 mm with clutch
– Fast lock long swing arm for full range distribution
– Safety guards

ACCESSORIES ON REQUEST

– Long agitator for powdered fertilizers
– Flexible cable for remote control
– Hydraulic opening
– Rain proof hopper cover
– AISI 304 stainless steel swing arm for salt distribution. Spreading width 2 ÷ 4 m
– Polyethylene hopper for ST 240 – STB 400
– AISI 304 stainless steel hopper and hot galvanized frame
– Hot galvanized frame

technical data
ST 240
STA 300
STB 400
Hopper capacity (Liters) 270 310 360
Spreading width (meters) 4÷18
Size (CM) Ø 95 x 81 Ø 110 x 95 Ø 115 x 110
Empty weight (kg) 90 95 98
Spreading width (hectare/hours) 2,0
Minimum tractor power (HP) 30
Power Take-off (RPM) 540
Fertilizer to be distributed Granular chemical, powdery,seeds, salt, sand
