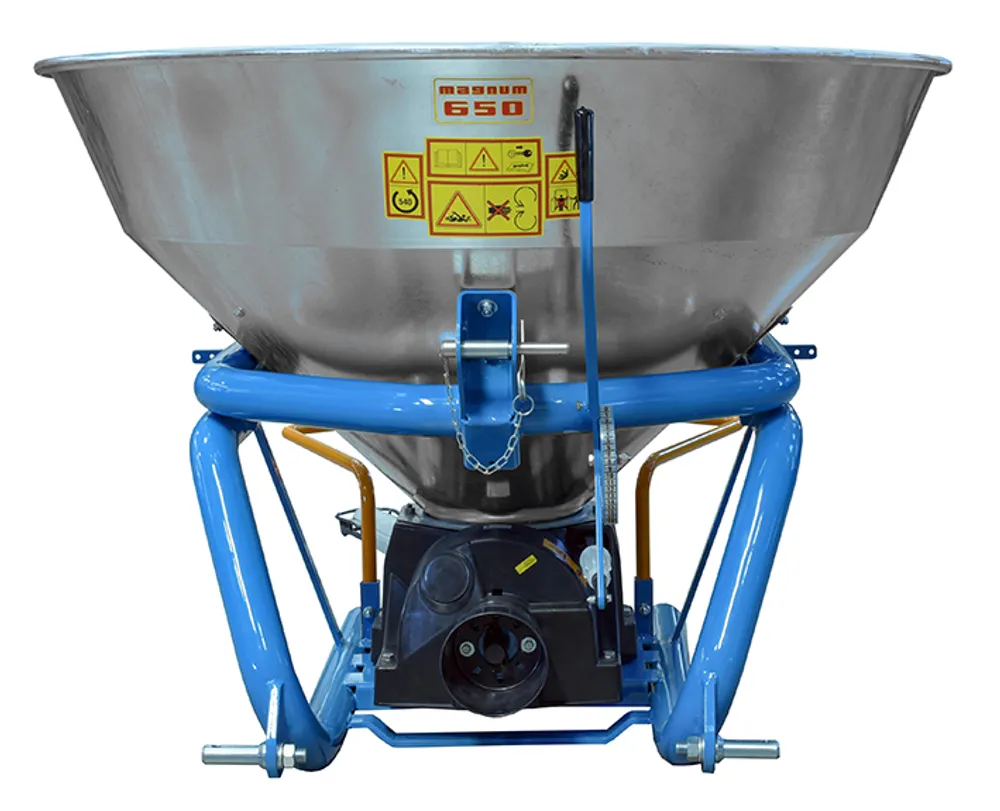

Fertilizer Spreader MAGNUM 650/P
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
The MAGNUM 650/P is a mounted pendulum-tube fertilizer spreader with a hot-dip galvanized double cone-shaped hopper.
TECHNICAL CHARACTERISTICS
- Single-tube frame, dismountable in 2 parts
- Seamless, hot-dip galvanized double cone-shaped hopper
- AISI 304 stainless steel metering device
- Spreading width adjustable from 4 to 18 m using the wrench supplied
- Manual lever to open the metering device
- Standard agitator
- 3-point linkage, category I and II
- CE cardan shaft L = 800 mm with ratchet clutch
- Pendulum-tube unit with 2 settings
- Even, constant spreading
- Safety guards on moving parts
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- High agitator for powdery fertilizers
- Mini Tray trolley with painted T.M. 5.00 x 10 wheels
- Flex cable for remote control
- Hydraulic opening
- Lighting kit
- Cover tarpaulin
- Short plastic spout for bilateral fertilizing
- AISI 304 stainless steel short spout for salt (spreading width 2-4 m)
- Intermediate plastic spout
- Long spout for one-side fertilizing
- Semi-mounted frame with swivel wheels
- Hot-dip galvanizing of the frame
Technical data
| Technical data | MAGNUM 650/P |
|---|---|
| Hopper capacity (litres) | 510 |
| Spreading width (metres) | 4÷18 |
| Dimensions (cm) | Ø 148 x 106 |
| Empty weight (kg) | 110 |
| Spreading capacity (hectares/hour) | 2,0 |
| Minimum tractor power (HP) | 50 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, seeds, salt, sand |
