TECHNICAL CHARACTERISTICS

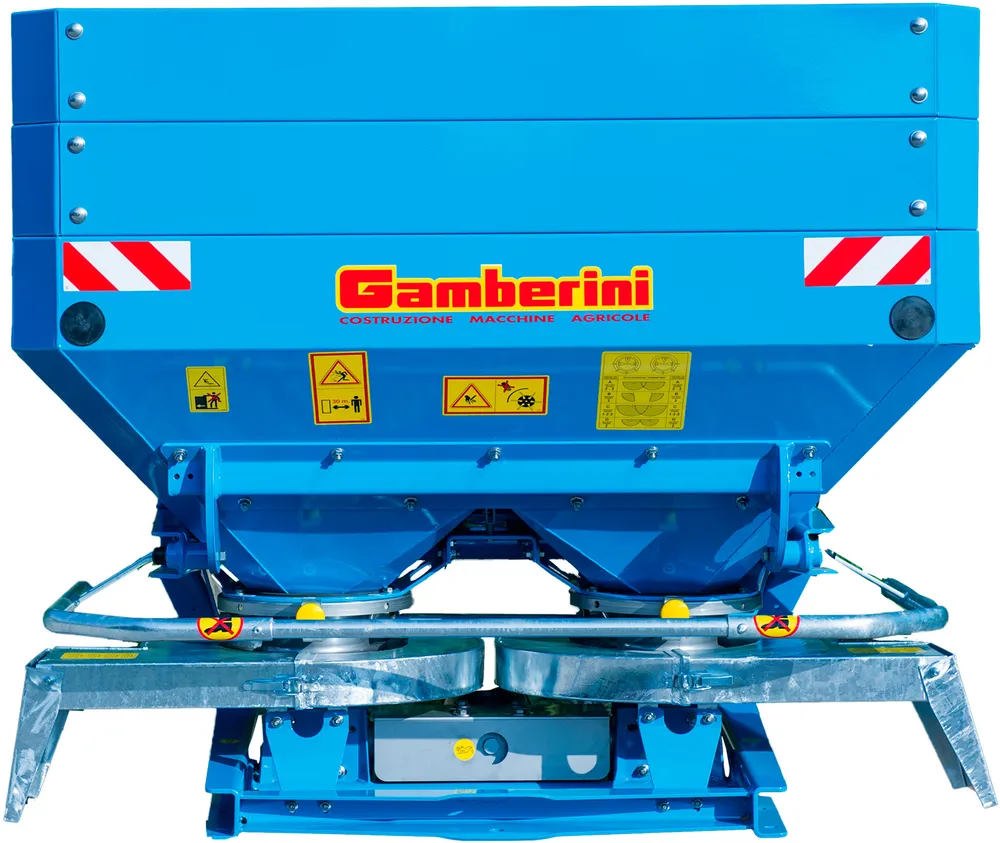

– Mounted fertilizer spreader with double spinner disc and rectangular tipping hopper
– Steel frame 6 mm thick, sturdy construction
– Aluminium gearbox with gears lubricated in oil bath
– N°2 Spreading discs with 8 stainless steel AISI 304 adjustable vanes
– Cardan shaft L = 800 mm
– 3 points linkage, 1st, 2nd Cat.
– Standard spring agitators
– N° 2 independent extensible levers to operate each
– AISI 304 stainless steel flow control with 3 single flow control opening
adjustable openings
– Filtering grill

ACCESSORIES ON REQUEST

– Spreader trolley with adjustable pitch widh from 1,2 to 1,8 metres and cardan joint 1400 mm long,
– Painted double conveyor for localized fertilization on 2 rows
– Hot galvanized double conveyor for localized fertilization on 2 rows
– Stainless steel AISI 304 double conveyor for localized fertilization on 2 rows
– Double flexible cable for remote control
– Double hydraulic opening
– Lighting kit
– N° 3 small wheels for manual handling when dismounted
– Rain proof hopper cover
– Hot galvanized hopper
– Hot galvanized hopper and frame
