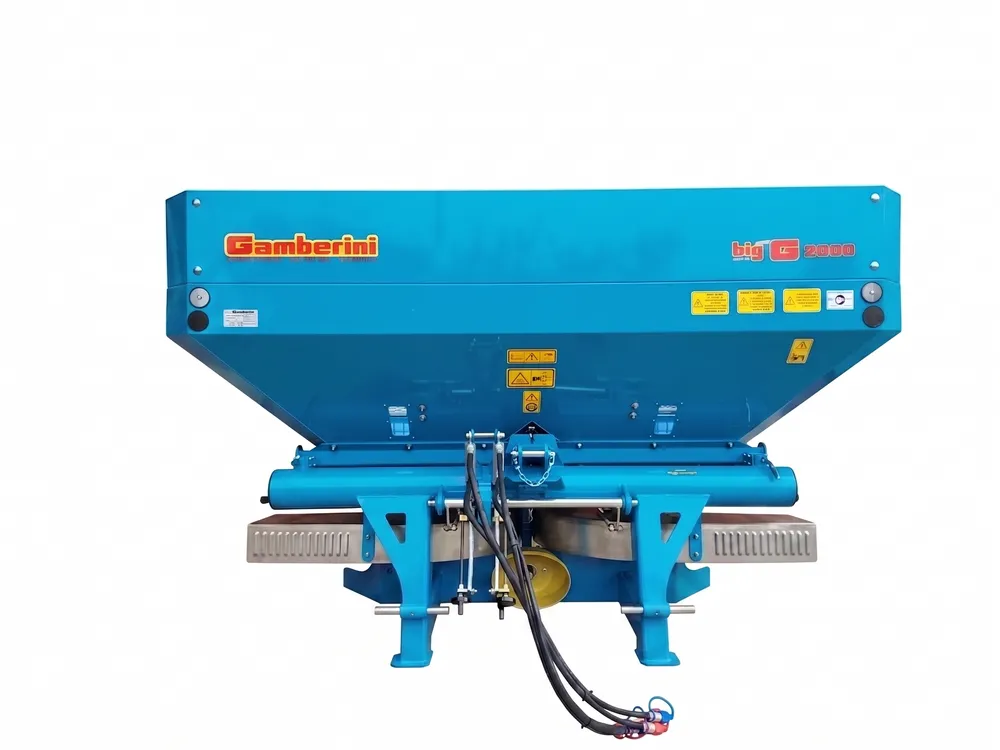

Fertilizer Spreader Big-G 2000

Fertilizer Spreader Big-G 2000

TECHNICAL CHARACTERISTICS

– Mounted fertilizer spreader with double spinner disc and rectangular fixed hopper
– Double hydraulic opening
– Tipping filtering grill
– Cardan shaft L = 1000 mm
– 3 points linkage, 2nd Cat.
– N° 3 aluminium gear boxes with steel gears lubricated in oil bath and tear resistant rubber pads
– Standard spring agitators
– N°2 Spreading discs with stainless steel AISI 304 adjustable vanes
– AISI 304 stainless steel flow control with 3 adjustable openings
– Tilting central fin for right / left distribution

ACCESSORIES ON REQUEST

– AISI 304 Stainless steel double conveyor for localized fertilization on 2 rows
– AISI 304 stainless steel hopper, central fin, disc guard; hot galvanized frame
– Lighting kit
– N° 4 small wheels for manual handling when dismounted
– Rain proof hopper cover
– Hot galvanized hopper and frame

TECHNICAL DATA
Big-G 1200
Big-G 1400
Big-G 1600
Big-G 2000
Hopper capacity (Liters) 1150 1340 1580 1850
Spreading width (meters) 24÷32
Size (LxPxH cm) 220x130x101 220x130x117 220x130x134 220x130x145
Empty weight (kg) 302 325 350 380
Spreading width (hectare/hours) 4
Minimum tractor power (HP) 75 80 95
Power Take-off (RPM) 540
Fertilizer to be distributed
Granular chemical, powdery, pelleted
