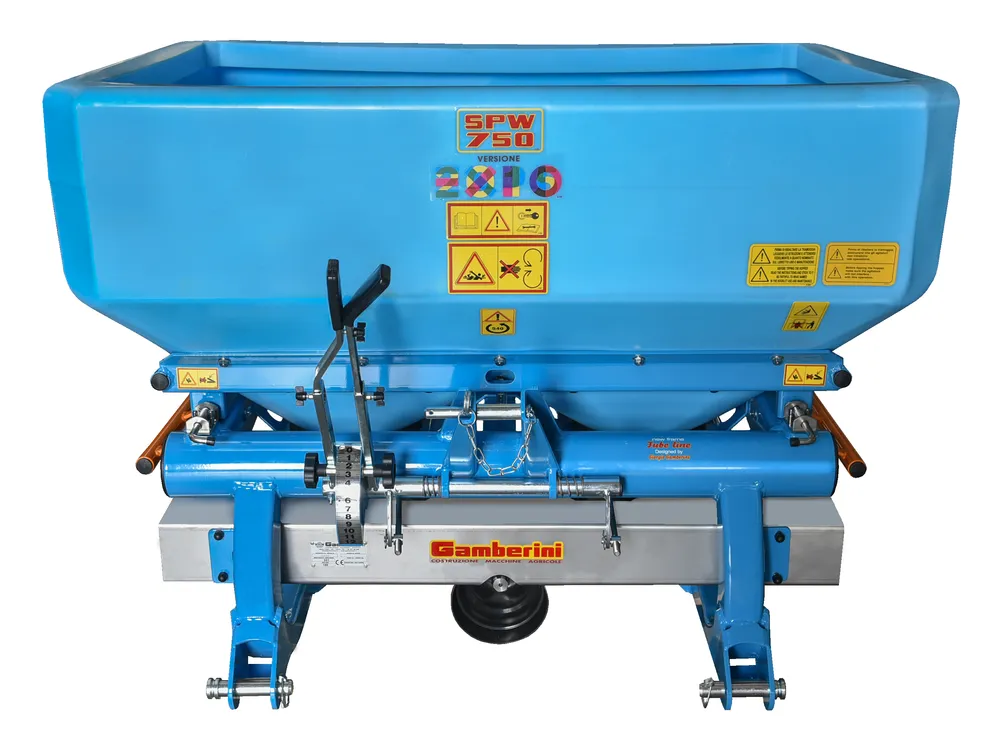

Fertilizer spreader SPW 750 EXPO Series

Fertilizer spreader SPW 750 EXPO Series

TECHNICAL CHARACTERISTICS

– Mounted fertilizer spreader with double spinner disc and rectangular tipping hopper in polyethylene
– New steel frame 6 mm thick, sturdy construction
– Spreading discs with 8 stainless steel AISI 304 adjustable vanes
– Cast iron gearbox with gears lubricated in grease-oil bath
– Cardan shaft L = 800 mm
– AISI 304 stainless steel flow control with 3 adjustable
– Standard spring agitators openings
– 3 points linkage, 1st, 2nd Cat.
– N° 2 independent extensible levers to operate each
– Filtering grill single flow control opening

ACCESSORIES ON REQUEST

– Spreader trolley with adjustable pitch widh from 1,2 to 1,8 metres with cardan 1400 mm long
– Painted double conveyor for localized fertilization on 2 rows
– Hot galvanized double conveyor for localized fertilization on 2 rows
– Stainless steel AISI 304 double conveyor for localized fertilization on 2 rows
– Double flexible cable for remote control
– Double hydraulic opening
– N° 3 small wheels for manual handling when dismounted
– Lighting kit
– Turning wheels application to partially relieve the tractor
– Rain proof hopper cover
– Hot galvanized frame

TECHNICAL DATA
SPW 750 PlasticOne
SPW 800 PlasticOne
SPW 1200 PlasticOne
Hopper capacity (Liters) 690 790 1100
Spreading width (Meters) 16÷24
Size (LxPxH cm) 140x100x104 163x126x104 163x126x130
Empty  weight(kg) 185 220 240
Spreading width (hectare/hours) 3,5
Minimum tractor power (HP) 40 55 80
Power Take-off (RPM) 540
Fertilizer to be distributed Granular chemical,Powdery,Pelleted
