Fertilizer Spreader SPW 550 XL
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION

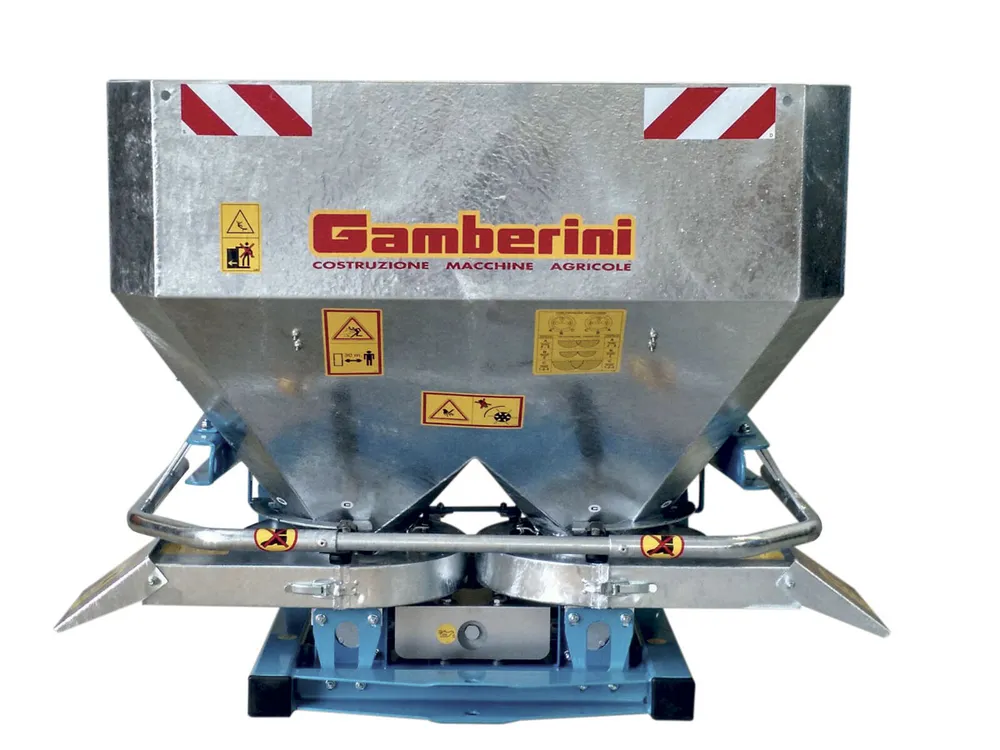

Fertilizer spreader SPW 550 XL, mounted, with fixed rectangular hopper and double spinner disc
TECHNICAL CHARACTERISTICS
- Sturdy “Tuboline” steel frame
- Fixed square hopper
- Gearbox with 3 aluminium housings
- Ø 400 spreading discs with 8 adjustable vanes in AISI 304 stainless steel
- Standard spring agitators
- AISI 304 stainless steel metering devices with 3 adjustable holes
- 3-point linkage, category I and II
- Two-lever opening for right- or left-hand spreading
- CE-compliant disc guard bar
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Zeta-shaped cast-iron agitators
- Eccentric aluminium agitators
- Stainless steel bolts throughout
- Painted closed double conveyor
- Hot-dip galvanized closed double conveyor
- Double flex cable for remote control
- Double hydraulic opening with 4 quick couplings
- Double micrometric hydraulic opening with 4 quick couplings
- Hose kit with taps (for 1 metering device)
- Lighting kit
- 3 castor wheels to move the spreader in the warehouse
- Cover tarpaulin
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | SPW 550 XL |
|---|---|
| Hopper capacity (litres) | 540 |
| Spreading width (metres) | 14÷20 |
| Hopper dimensions (WxDxH cm) | 105x105x100 |
| Overall dimensions (WxDxH cm) | 125x120x100 |
| Empty weight (kg) | 128 |
| Spreading capacity (hectares/hour) | 3,5 |
| Minimum tractor power (HP) | 45 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
