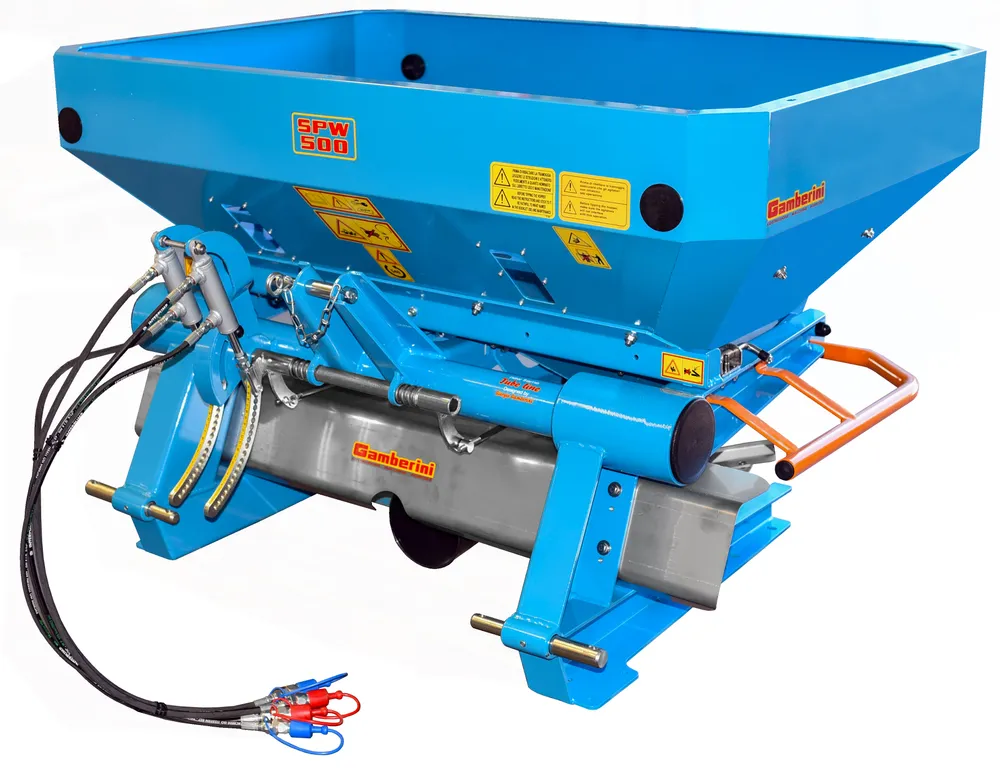

FERTILIZER SPREADER SPW 500

FERTILIZER SPREADER SPW 500

TECHNICAL CHARACTERISTICS

– Mounted fertilizer spreader with double spinner disc and rectangular tipping hopper
– Steel frame 6 mm thick, sturdy construction
– Aluminium gearbox with gears lubricated in oil bath
– N°2 Spreading discs with 8 stainless steel AISI 304 adjustable vanes
– Cardan shaft L = 800 mm
– 3 points linkage, 1st, 2nd Cat.
– Standard spring agitators
– N° 2 independent extensible levers to operate each
– AISI 304 stainless steel flow control with 3 single flow control opening
adjustable openings
– Filtering grill

ACCESSORIES ON REQUEST

– Spreader trolley with adjustable pitch widh from 1,2 to 1,8 metres and cardan joint 1400 mm long,
– Painted double conveyor for localized fertilization on 2 rows
– Hot galvanized double conveyor for localized fertilization on 2 rows
– Stainless steel AISI 304 double conveyor for localized fertilization on 2 rows
– Double flexible cable for remote control
– Double hydraulic opening
– Lighting kit
– N° 3 small wheels for manual handling when dismounted
– Rain proof hopper cover
– Hot galvanized hopper
– Hot galvanized hopper and frame

TECHNICAL DATA
SPW 500
SPW 750
SPW 900
Hopper capacity (liters) 515 690 850
Spreading width (Meters) 16÷24
Size (LxPxH cm) 140x97x90 140x97x106 140x97x118
Empty weight (kg) 180 195 215
Spreading width (hectare/hours) 3,5
Minimum tractor power (HP) 40 55 65
Power Take-off (RPM) 540
Fertilizer to be distributed Granular chemical, powdery, pelleted
