Fertilizer Spreader SPW 400
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION

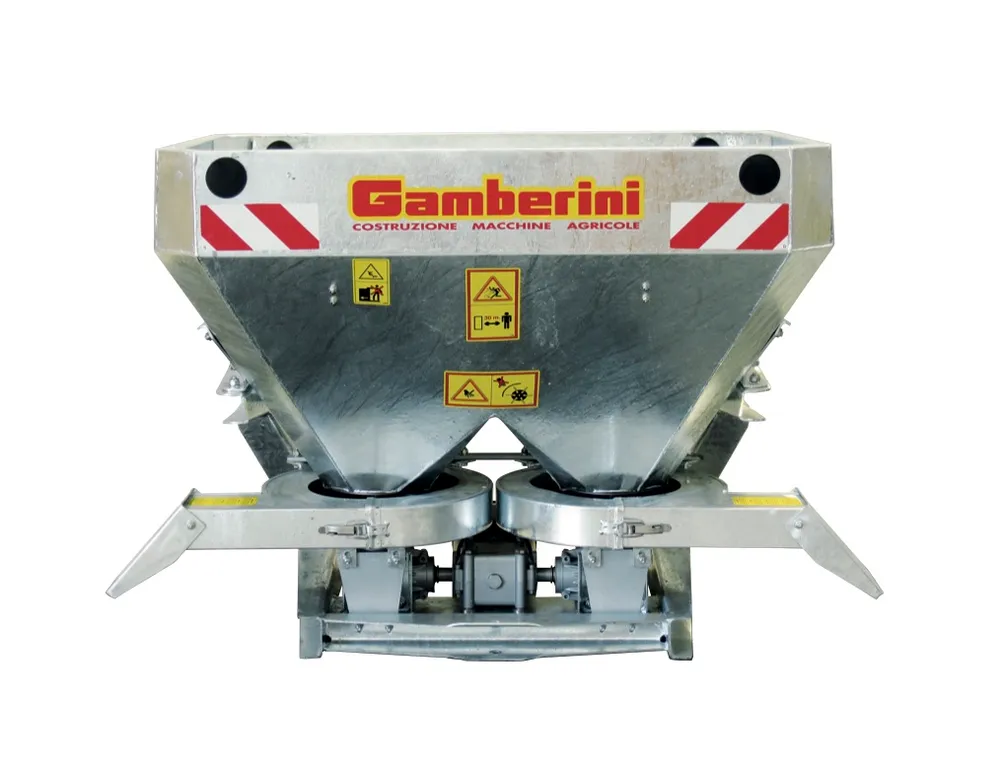

Fertilizer spreader SPW 400, mounted, with fixed rectangular hopper and double spinner disc
TECHNICAL CHARACTERISTICS
- Box-section steel frame, 4 mm thick, extremely sturdy
- Fixed rectangular hopper
- Gearbox with 3 aluminium housings
- Spreading discs with 8 adjustable vanes in AISI 304 stainless steel
- Standard spring agitators
- AISI 304 stainless steel metering devices with 3 adjustable holes
- 3-point linkage, category I and II
- Two-lever opening for right- or left-hand spreading
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Zeta-shaped cast-iron agitators
- Eccentric aluminium agitators
- Stainless steel bolts throughout
- Painted closed double conveyor
- Hot-dip galvanized closed double conveyor
- Double flex cable for remote control
- Double hydraulic opening with 4 quick couplings
- Hose kit with taps (for 1 metering device)
- Lighting kit
- Cover tarpaulin
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | SPW 400 |
|---|---|
| Hopper capacity (litres) | 360 |
| Spreading width (metres) | 10÷18 |
| Dimensions (WxDxH cm) | 105x85x103 |
| Empty weight (kg) | 110 |
| Spreading capacity (hectares/hour) | 3,5 |
| Minimum tractor power (HP) | 40 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
