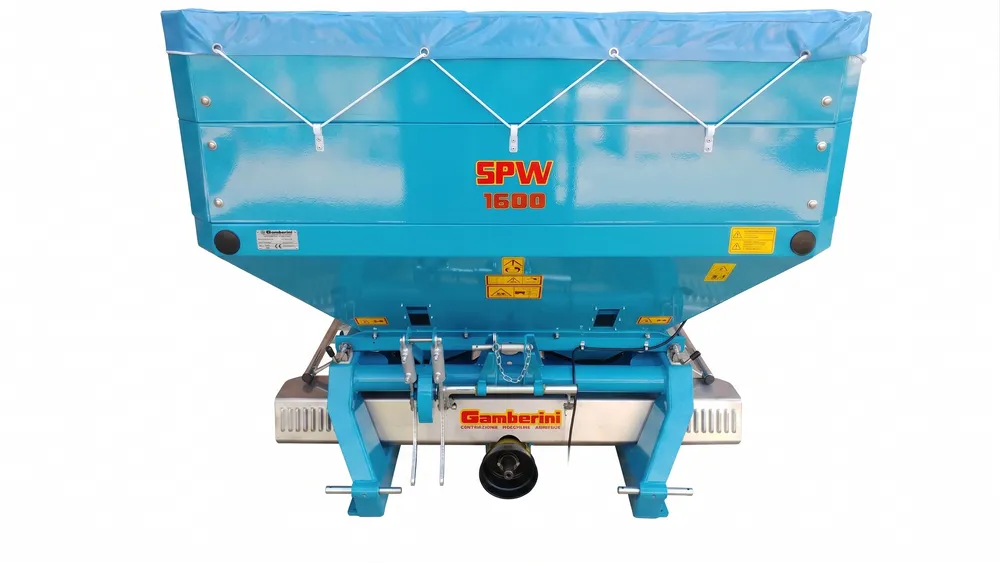

Fertilizer Spreader SPW 1600
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
Fertilizer spreader SPW 1600, mounted, with rectangular tipping hopper and double spinner disc
TECHNICAL CHARACTERISTICS
- Box-section steel frame, 6 mm thick
- Rectangular tipping hopper
- Gearbox with 1 central cast-iron housing and 2 side aluminium housings, oil bath (Bondioli & Pavesi)
- Spreading discs with 8 adjustable vanes in AISI 304 stainless steel
- Standard spring agitators
- AISI 304 stainless steel metering devices with 3 adjustable holes
- 3-point linkage, category I and II
- Separable double lever for opening the metering devices
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Zeta-shaped cast-iron agitators
- Eccentric aluminium agitators
- Stainless steel bolts throughout
- Standard Tray trolley with adjustable track, 1200-1800 mm
- Painted closed double conveyor
- Hot-dip galvanized closed double conveyor
- AISI 304 stainless steel closed double conveyor
- Metering devices pre-set for opening adjustment (the pair)
- Double flex cable for remote control
- Double hydraulic opening with 4 quick couplings
- Double micrometric hydraulic opening with 4 quick couplings
- Hose kit with taps (for 1 metering device)
- Lighting kit
- Stainless steel 5-vane disc kit (recommended for sowing)
- 3 castor wheels to move the spreader in the warehouse
- Cover tarpaulin
- Semi-mounted frame with swivel wheels
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | SPW 1600 |
|---|---|
| Hopper capacity (litres) | 1500 |
| Spreading width (metres) | 16÷24 |
| Dimensions (WxDxH cm) | 163x126x136 |
| Empty weight (kg) | 265 |
| Spreading capacity (hectares/hour) | 3,5 |
| Minimum tractor power (HP) | 95 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
