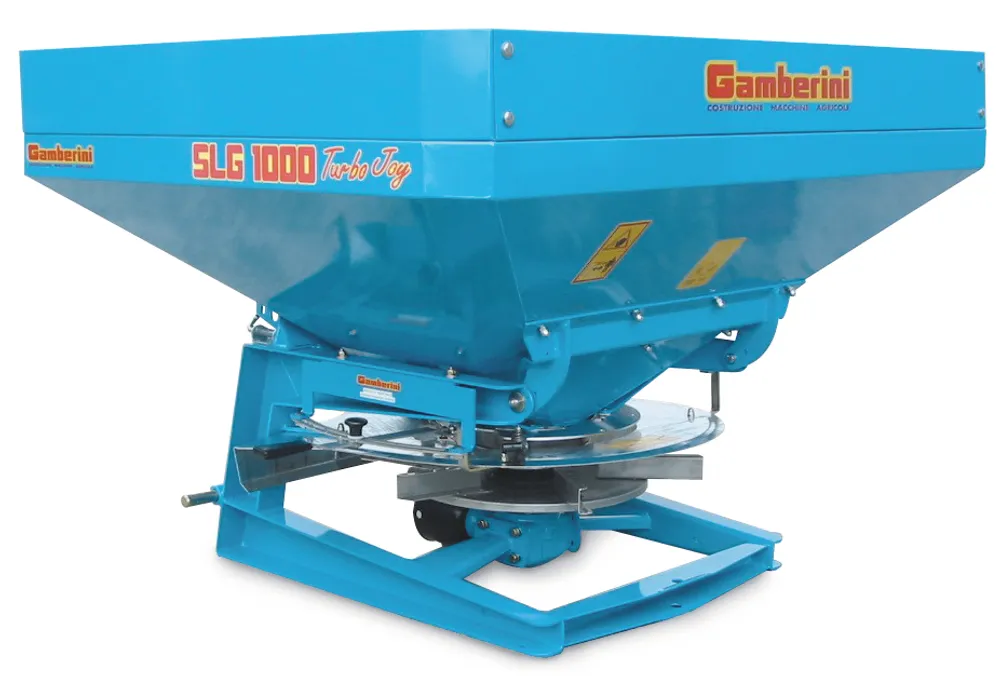

Fertilizer spreader SLG 1000 Turbo Joy
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
The SLG 1000 Turbo Joy is a mounted fertilizer spreader with a rectangular tipping hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Box-section steel frame, 6 mm thick
- Rectangular tipping hopper
- Angle gearbox with cast-iron housing, steel gears in oil bath
- Flex control cable
- Spreading disc with 6 AISI 304 stainless steel adjustable vanes
- 3-point linkage, category I and II
- AISI 304 stainless steel metering device with 3 adjustable holes
- Standard spring agitator
- Gamberini industrial patent
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers + guide ring
- Standard Tray trolley with adjustable track, 1200-1800 mm
- Painted closed side conveyor
- Hot-dip galvanized closed side conveyor
- Lighting kit
- 3 castor wheels to move the spreader in the warehouse
- Cover tarpaulin
- AISI 304 stainless steel hopper, raising border and disc guard, plus hot-dip galvanized frame
- Semi-mounted frame with swivel wheels
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | SLG 1000 TURBO JOY |
|---|---|
| Hopper capacity (litres) | 930 |
| Spreading width (metres) | 16÷20 |
| Dimensions (cm) | 163x127x108 |
| Empty weight (kg) | 188 |
| Spreading capacity (hectares/hour) | 3 |
| Minimum tractor power (HP) | 60 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
