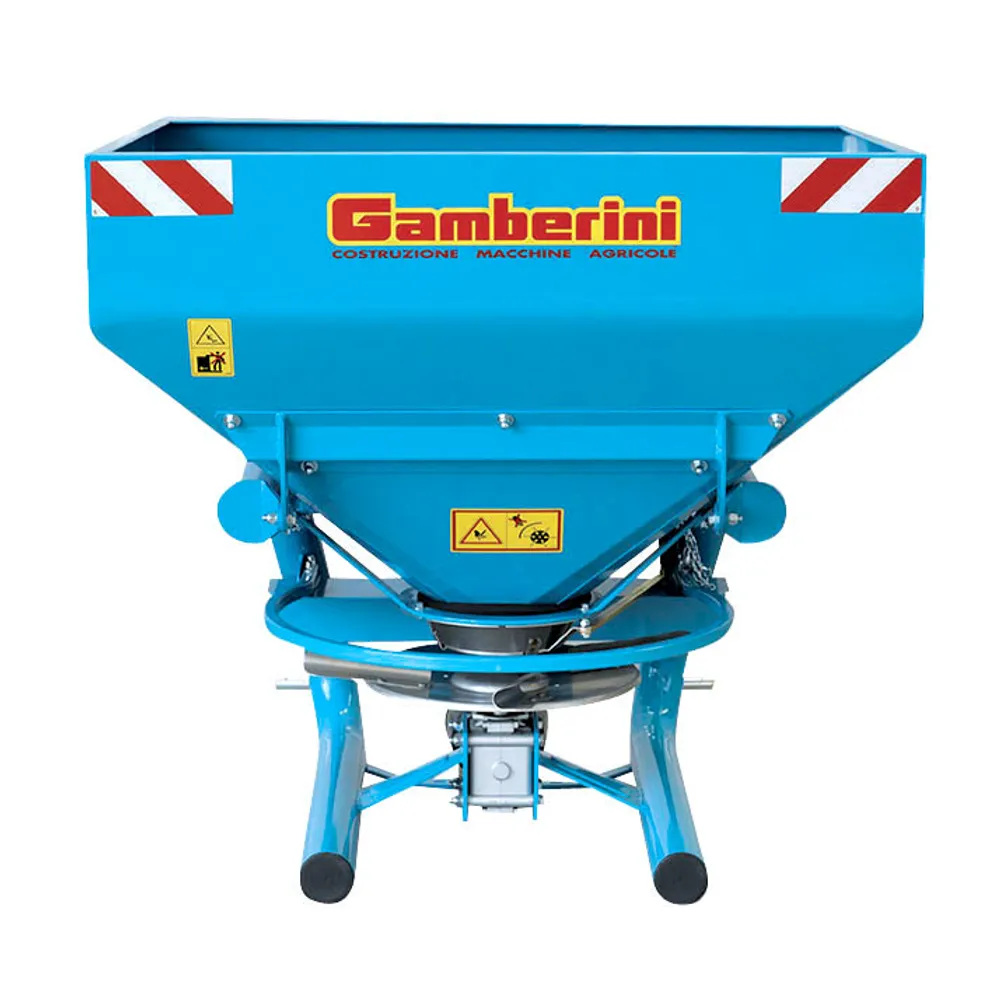

Fertilizer Spreader SHR 400
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
SHR 400 mounted fertilizer spreader with rectangular tipping hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Light tubular frame
- Rectangular tipping hopper with 3 outlet holes
- Aluminium gearbox with lubricant
- Spreading disc with 4 adjustable AISI 304 stainless steel vanes
- Standard cast-iron agitator
- AISI 304 stainless steel metering device with 3 adjustable holes
- 3-point linkage, category I
- Lever to shift the outlet holes
- Type-1 cardan shaft L = 800 mm
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers + guide ring
- Painted closed side conveyor
- Hot-dip galvanized closed side conveyor
- AISI 304 stainless steel closed side conveyor
- Painted closed bilateral conveyor (with 4-hole hopper)
- Hot-dip galvanized closed bilateral conveyor (with 4-hole hopper)
- AISI 304 stainless steel closed bilateral conveyor (with 4-hole hopper)
- Manual shutter for the bilateral conveyor (to fertilize 1 row)
- Hot-dip galvanized spreading limiter
- Flex cable for remote control
- Hydraulic opening
- Cover tarpaulin
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | SHR 400 |
|---|---|
| Hopper capacity (litres) | 340 |
| Spreading width (metres) | 8÷14 |
| Dimensions (WxDxH cm) | 120x90x95 |
| Empty weight (kg) | 70 |
| Spreading capacity (hectares/hour) | 2,5 |
| Minimum tractor power (HP) | 35 |
| Power take-off (rpm) | 540 |
| Fertilizer to be distributed | Granular chemical, powdery, pelleted |
