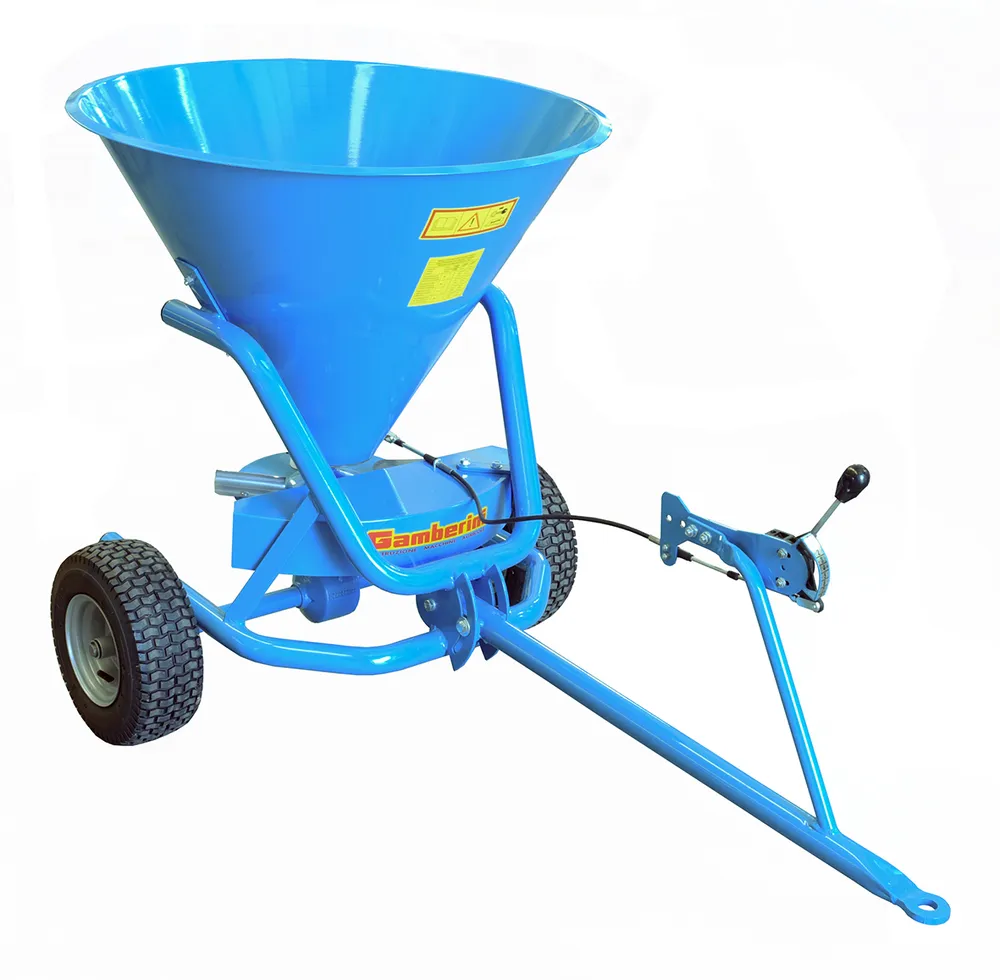

Fertilizer Spreader FC 150
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
FC 150 fertilizer spreader, towed on wheels, with conical hopper and spreading disc.
TECHNICAL CHARACTERISTICS
- Light, sturdy tubular frame
- Seamless conical hopper
- Standard agitator
- Straight drawbar with Ø 25 mm tow eye
- AISI 304 stainless steel metering device
- In-house-made cast-iron differential
- 13x5.00-6 wheels
- Manual lever to open the metering device
- Painted spreading disc with 4 adjustable AISI 304 stainless steel vanes
- The spreading disc is driven by the wheels, so the fertilizer’s throwing distance depends on the towing vehicle’s forward speed
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers
- Hot-dip galvanized spreading limiter
- Flex cable for remote control
- Ø 50 mm ball-hitch drawbar attachment
- AISI 304 stainless steel spreading disc
- Filtering grid
- Cover tarpaulin
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | FC 150 |
|---|---|
| Hopper capacity (litres) | 60 |
| Spreading width (metres) | 3÷10 |
| Dimensions (WxDxH cm) | 87x155x62 |
| Empty weight (kg) | 40 |
| Spreading capacity (hectares/hour) | 0,5 |
| Fertilizer to be distributed | Granular chemical, seeds |
