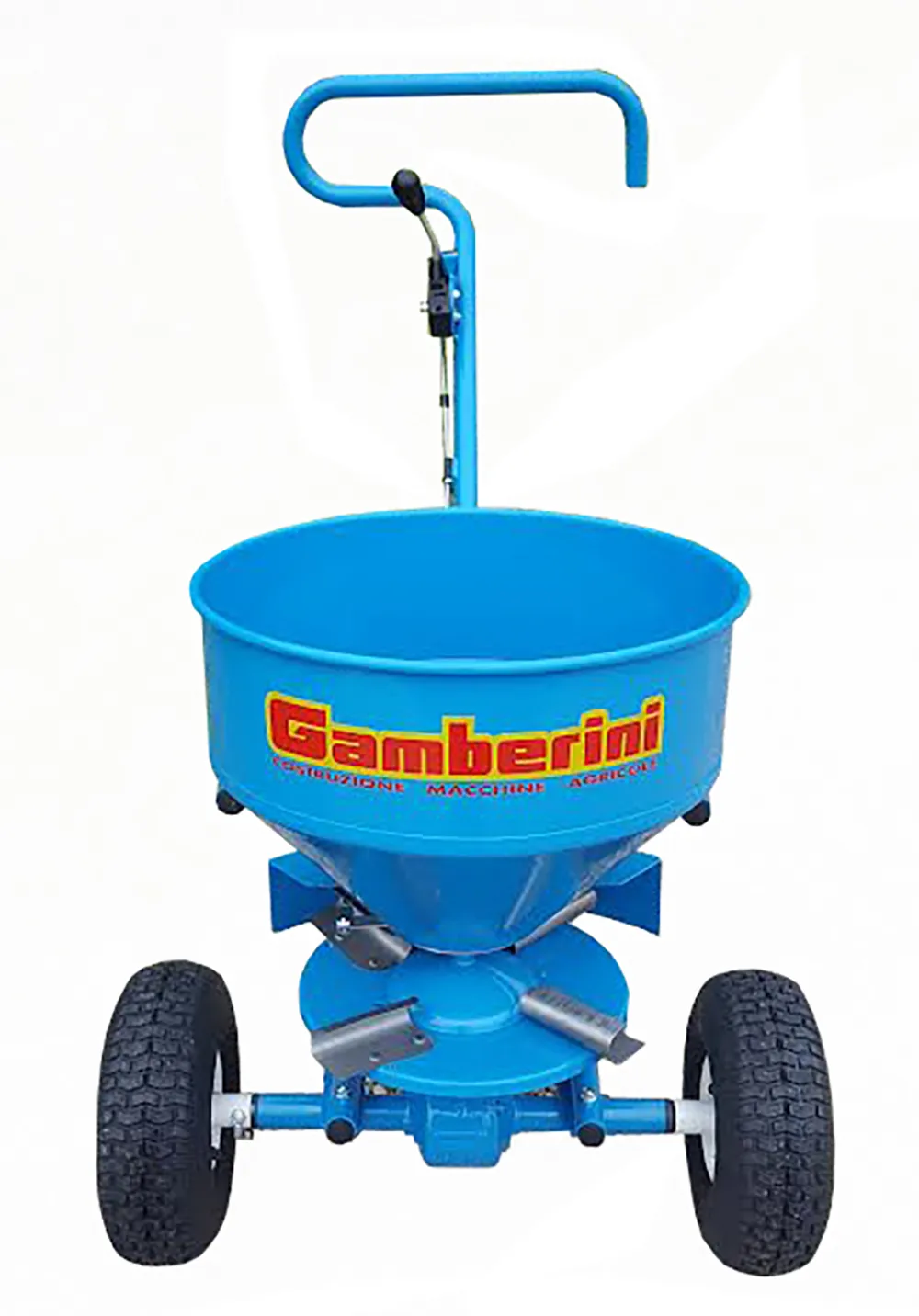

Fertilizer Spreader F80
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
F80 fertilizer spreader, hand-pushed on wheels, with spreading disc.
TECHNICAL CHARACTERISTICS
- Light, sturdy tubular frame with support foot
- Two wheel-track settings
- AISI 304 stainless steel metering device
- Manual lever to open the metering device
- Painted double cone-shaped hopper
- Painted spreading disc with 4 adjustable stainless steel vanes
- In-house-made cast-iron differential
- 4.10-3.50x4 tyres with metal rim
- Standard agitator
- Ground driven; the spreading width depends on the operator’s walking speed
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Articulated agitator for powdery fertilizers
- AISI 304 stainless steel spreading limiter
- Hot-dip galvanized spreading limiter
- AISI 304 stainless steel spreading disc
- Cover tarpaulin
- AISI 304 stainless steel hopper and guard
- Hot-dip galvanizing of the hopper
- Full hot-dip galvanizing
Technical data
| Technical data | F80 |
|---|---|
| Hopper capacity (litres) | 25 |
| Spreading width (metres) | 3÷8 |
| Dimensions (WxDxH cm) | 130x66x69 |
| Empty weight (kg) | 22 |
| Spreading capacity (hectares/hour) | 0,5 |
| Fertilizer to be distributed | Granular chemical, powdery, seeds |
