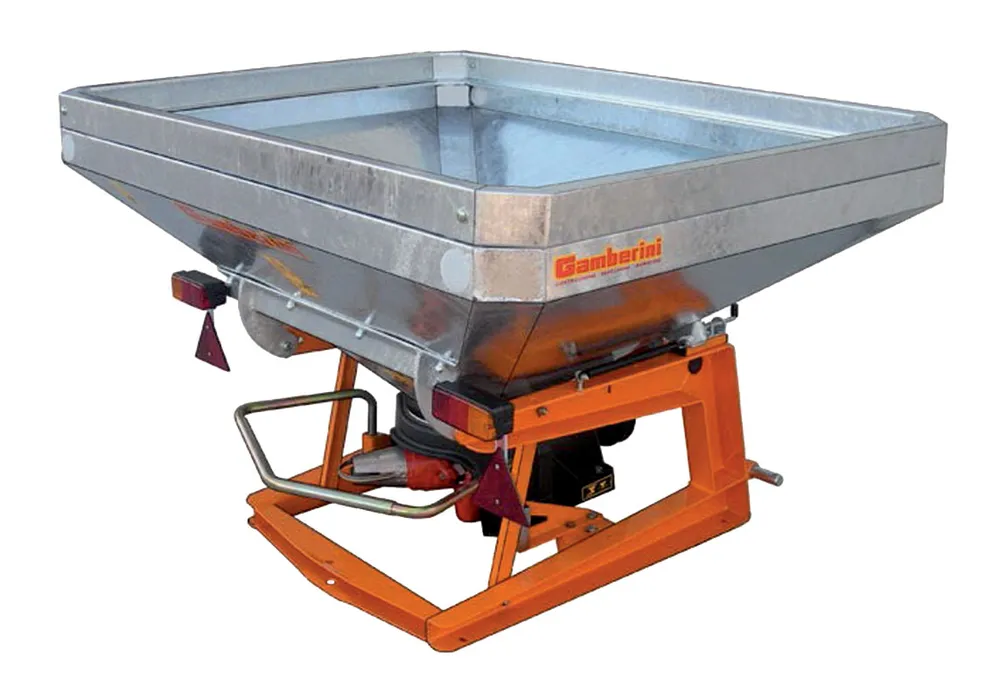

Salt Spreader PRO 600
TECHNICAL CHARACTERISTICS
– Painted steel frame 6 mm thick, sturdy construction
– Hot galvanized rectangular shaped tipping hopper
– AISI 304 stainless steel flow control
– Spreading width adjustable from 2 to 6 metres by means of a special wrench supplied
– Articulated extended agitator with rubber flange
– Lighting kit
– 3 points linkage, 1st and 2nd Cat
– Filtering grill
– Cardan shaft L = 800 mm with clutch
– Swing arm with 2 angle adjustments
– Rain proof hopper cover
– Fast lock long swing arm with salt dispenser
– Extensible manual lever for flow control opening
ACCESSORIES ON REQUEST
– Flexible cable for remote control
– Hydraulic opening
– Hydraulic operation release with hydraulic motor, quick connection hoses L = 2 m. and adjustment valve
( cardan shaft and car application not included )
– Indipendent operating release, with petrol engine 5,5 CV, hydraulic power unit, ON / OFF remote control
for the car driver, supporting frame ( cardan joint not included )
– N° 3 small wheels for manual handling when dismounted
– AISI 304 stainless steel short swing arm for salt distribution. Spreading width 2 ÷ 4 m
– AISI 304 stainless steel hopper and extended walls. Hot galvanized hopper
– Hot galvanized frame
TECHNICAL DATA |
PRO 600 |
PRO 800 |
PRO 1000 |
PRO 1200 |
---|---|---|---|---|
Hopper capacity (Liters) | 585 | 740 | 930 | 1145 |
Spreading width (meters) | 2÷6 | |||
Size (cm) | 163x127x92 | 163x127x100 | 163x127x108 | 163x127x120 |
Empty weight (kg) | 165 | 178 | 190 | 208 |
Minimum tractor power (HP) | 60 | 65 | 70 | 85 |
Power Take-off (RPM) | 540 |
