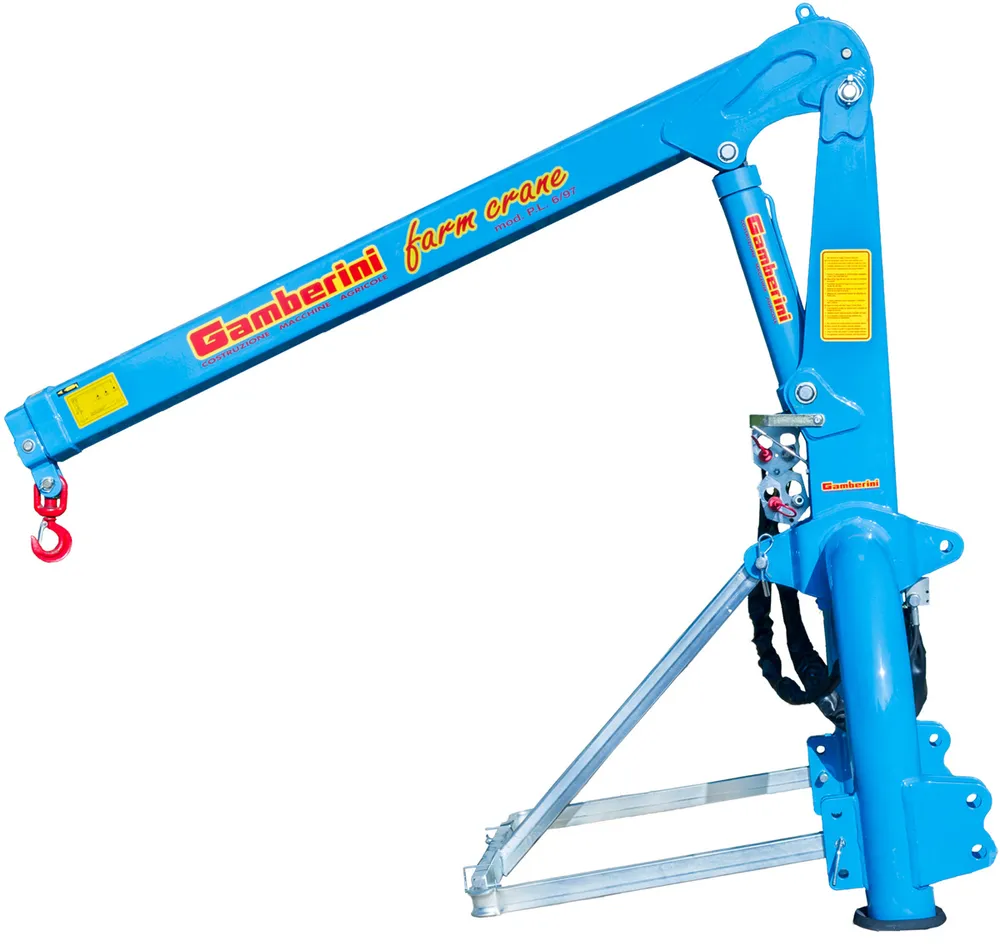

Farm Crane P.L. 6/97
Request information →Need a different configuration? We also build made-to-measure versions. Ask for a dedicated solution
DESCRIPTION
FARM CRANE P.L. 6/97 crane, mounted on the tractor, for lifting fertilizer big bags.
TECHNICAL CHARACTERISTICS
- Practical tractor-mounted crane, for handling big bags and general loads as well
- 2 double-acting hydraulic cylinders with lock valve controlling the descent, for lifting and boom extension
- Maximum-load safety valve
- Possibility to fit the crane with a fertilizer spreader up to 1000 litres capacity
- Crane support frame
- Crane structure in Domex 740 steel
- 1/2” quick couplings
- Hook with swivelling safety catch
- 3rd-point linkage, category II
- CE use and maintenance manual
ACCESSORIES ON REQUEST
- Spreader-mounting fittings
Technical data
| Technical data | FARM CRANE PL 6/97 |
|---|---|
| Max horizontal reach (metres) | 3,50 |
| Max lifting height (metres) | 4,5 |
| Empty weight (kg) | 190 |
| Dimensions with the arm retracted (cm) | H = 180 W = 120 D = 200 |
| Minimum tractor power (HP) | 100 |
| Max pressure required from the tractor hydraulic unit (bar) | 190 |
